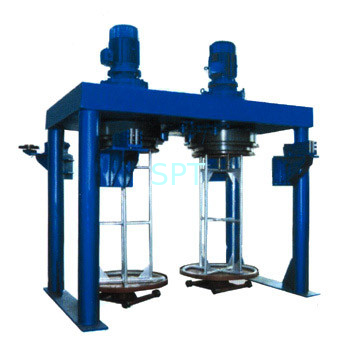

LDD-560～750 Invered mode two side tank bill block

LDD-560～750 Invered mode two side tank bill block
LDD-560～750 Invered mode two side tank bill block

Large Image :  LDD-560～750 Invered mode two side tank bill block Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Payment Terms: TT LC
Contact Now
Detailed Product Description
Standard: ASTM,AISI,JIS,GB,DIN Application: Manufacturing
Wire Gauge: 0.1-3mm Type: Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS
Steel Grade: STEEL Certification: ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE

Type: LDD-560～750
Description: This machine is able to draw low, medium and high carbon steel wire, with diameter ofφ6.5-φ12. It adopts upended drawing and withdrawing. It has large receiving grail weight, reliable and convenient wire discharge.
Specifications: 1.Block diameter:560-750mm
2.Number of rolls:1-2
3.Maximum diameter of incoming line:6.5-12mm
4.Resist Pull Intensity:≤1100N/mm
5.Drawing speed:≤60m/min
6.Fitting motor:Frequency conversion speed:7.5-22kw
7.Weight: -3500kg
8.Overall dimensions(LxWxH):1500x1500x2500mm
