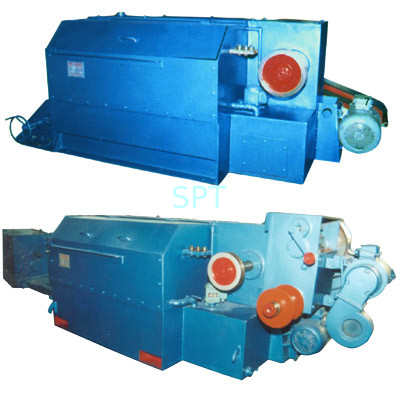

LT1-12-15 350-200 fine wire wet drawing machine

LT1-12-15 350-200 fine wire wet drawing machine
LT1-12-15 350-200 fine wire wet drawing machine

Large Image :  LT1-12-15 350-200 fine wire wet drawing machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Payment Terms: TT LC
Contact Now
Detailed Product Description
Standard: ASTM,AISI,JIS,GB,DIN Application: Manufacturing
Wire Gauge: 0.1-3mm Type: Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS
Steel Grade: STEEL Certification: ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE

Type: LT1-12～15/350～200
Description: This machine is maily used to draw stainless steel wires.
Specifications: 1.dia.of the stepcone:φ350, φ300, φ250,φ200mm
2.Number of wiredrawing dies:12-15
3.Dia.of feeding wires:2.0-0.5mm
4.Dia.of output wires:1.2-0.25mm
5.cumulative reduction:80%
6.compressibility of average portion:≈12%
7.Drawing speed:120～300m/min
8.associated motor(frepuency):4-11kw
9.Overall dimension(LxWxH):1500*1000*1000mm
10.Weight:1500kg
