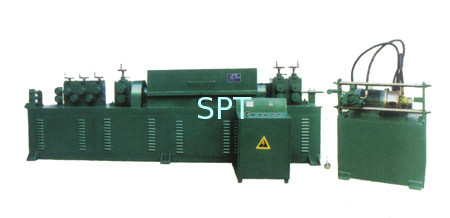

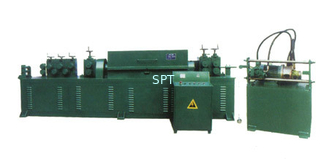

GT12 20 Straightening and cutting machine of reinforcing steel bar

GT12 20 Straightening and cutting machine of reinforcing steel bar
GT12 20 Straightening and cutting machine of reinforcing steel bar

Large Image :  GT12 20 Straightening and cutting machine of reinforcing steel bar Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Payment Terms: TT LC
Contact Now
Detailed Product Description
Standard: ASTM,AISI,JIS,GB,DIN Application: Manufacturing
Wire Gauge: 0.1-3mm Type: Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS
Steel Grade: STEEL Certification: ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE

Type: GT-12/20
Description: This machine mainly consists of tray bar rack, straighting rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances.
Specifications: 1.Dia.of adjust straight wier:3,4-14mm
2.Long of cut off:700-7000mm
3.Speed of adjust straight:≥300m/min
4.Numder of adjust straight:3
5.Electric motor of adjust straight:Y100L-2,4kw
6.Electric motor of cut off:Y132M1-6,4kw
7.Overall dimension(LxWxH):9100x1010x1365mm
8.Weight:1480kg
