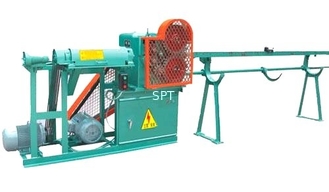

GT-4 14 type straighting cutter

GT-4 14 type straighting cutter
GT-4 14 type straighting cutter

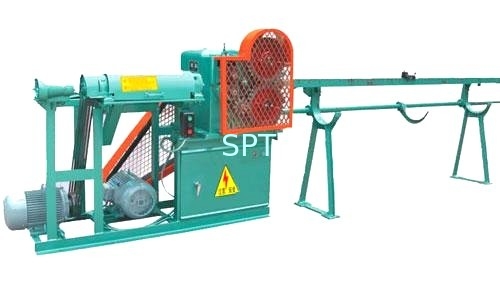

Large Image :  GT-4 14 type straighting cutter Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Payment Terms: TT LC
Contact Now
Detailed Product Description
Standard: ASTM,AISI,JIS,GB,DIN Application: Manufacturing
Wire Gauge: 0.1-3mm Type: Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS
Steel Grade: STEEL Certification: ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE

Type: GT-4/14
Description: This machine mainly consists of tray bar rack, straighting rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances.
Specifications: 1.Dia.of adjust straight wier:3,4-14mm
2.Long of cut off:700-7000mm
3.Speed of adjust straight:≥300m/min
4.Numder of adjust straight:3
5.Electric motor of adjust straight:Y100L-2,4kw
6.Electric motor of cut off:Y132M1-6,4kw
7.Overall dimension(LxWxH):9100x1010x1365mm
8.Weight:1480kg
