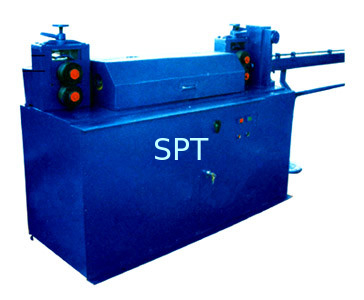

GT-4 12 type Straightener

GT-4 12 type Straightener
GT-4 12 type Straightener

Large Image :  GT-4 12 type Straightener Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Payment Terms: TT LC
Contact Now
Detailed Product Description
Standard: ASTM,AISI,JIS,GB,DIN Application: Manufacturing
Wire Gauge: 0.1-3mm Type: Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS
Steel Grade: STEEL Certification: ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE

Type: GT4-12
Description: This machine mainly consists of tray bar rack, straighting rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances.
Specifications: 1.Dia.of adjust straight wier:φ4-φ12mm
2.Long of cut off:200-6300mm
3.Speed of adjust straight:Y35m/min
4.Adjust straight reel speed:2000rpm
5.Electric motor of cut off:Y100L-2-3kw
6.Electric motor of cut off:Y112M1-6-2.2kw
7.Overall dimension(LxWxH):8000x70s0x1240mm

(Does not include rod -)
8.Weight:700kg
