GT-4 8 type straighting cutter

GT-4 8 type straighting cutter
GT-4 8 type straighting cutter

Large Image :  GT-4 8 type straighting cutter Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Payment Terms: TT LC
Contact Now
Detailed Product Description
Standard: ASTM,AISI,JIS,GB,DIN Application: Manufacturing
Wire Gauge: 0.1-3mm Type: Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS
Steel Grade: STEEL Certification: ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE

Type: GT-4/8

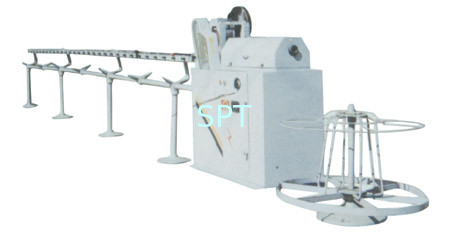

Description: This machine mainly consists of tray bar rack, straighting rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances.
Specifications: 1.Dia.of adjust straight wier:3,4-8mm
2.Long of cut off:100-600mm
3.Error of cut off:±2mm
4.Speed of adjust straight:≥35m/min
5.Adjust straight reel speed:2000rpm
6.Electric motor of adjust straight:Y100L-2,3kw
7.Electric motor:Y112M-6,2.2kw
8.Overall dimension(LxWxH):7330×600×1240mm
9.Weight:650kg
